集成

为方便本地测试，此样例以H2作为服务数据库。

可以随时删除清空整个库，可以默认自动创建数据库表。

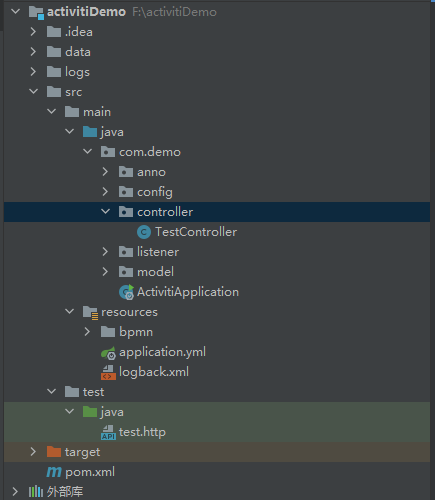

1.创建Maven工程

2.pom.xml配置

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>org.example</groupId>
    <artifactId>activitiDemo</artifactId>
    <version>1.0-SNAPSHOT</version>

    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
        <java.version>1.8</java.version>
        <hutool.version>5.8.26</hutool.version>
        <activiti.version>7.1.0.M6</activiti.version>
        <skipTest>true</skipTest>
    </properties>

    <dependencyManagement>
        <dependencies>

            <!-- SpringBoot的依赖配置-->
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-dependencies</artifactId>
                <version>2.5.15</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>

            <dependency>
                <groupId>cn.hutool</groupId>
                <artifactId>hutool-all</artifactId>
                <version>${hutool.version}</version>
            </dependency>

            <dependency>
                <groupId>org.activiti</groupId>
                <artifactId>activiti-spring-boot-starter</artifactId>
                <version>${activiti.version}</version>
            </dependency>

        </dependencies>
    </dependencyManagement>

    <dependencies>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-aop</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-jdbc</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-security</artifactId>
        </dependency>

        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>javax.servlet-api</artifactId>
        </dependency>

        <dependency>
            <groupId>org.activiti</groupId>
            <artifactId>activiti-spring-boot-starter</artifactId>
        </dependency>

        <dependency>
            <groupId>com.h2database</groupId>
            <artifactId>h2</artifactId>
        </dependency>

        <dependency>
            <groupId>cn.hutool</groupId>
            <artifactId>hutool-all</artifactId>
        </dependency>

        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>

    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <configuration>
                    <source>1.8</source>
                    <target>1.8</target>
                    <encoding>utf-8</encoding>
                    <compilerArgs>
                        <compilerArg>-parameters</compilerArg>
                    </compilerArgs>
                </configuration>

            </plugin>
        </plugins>
    </build>

</project>

3.application.yaml配置

# 开发环境配置
server:
  # 服务器的HTTP端口，默认为8080
  port: 8082
  servlet:
    # 应用的访问路径
    context-path: /acti
  tomcat:
    # tomcat的URI编码
    uri-encoding: UTF-8
    # 连接数满后的排队数，默认为100
    accept-count: 1000
    threads:
      # tomcat最大线程数，默认为200
      max: 800
      # Tomcat启动初始化的线程数，默认值10
      min-spare: 100

# 日志配置
logging:
  level:
    com.demo: debug
    org.springframework: warn

# Spring配置
spring:
  # 文件上传
  servlet:
    multipart:
      # 单个文件大小
      max-file-size: 10MB
      # 设置总上传的文件大小
      max-request-size: 20MB
  datasource:
    # jdbc:h2:F:\activitiDemo\data\demodb
    url: jdbc:h2:file:./data/demodb
    driver-class-name: org.h2.Driver
    username: sa
    password:
  h2:
    console:
      enabled: true

  activiti:
    process-definition-location-prefix: classpath*:/bpmn/
    database-schema-update: true
    check-process-definitions: false
  security:
    user:
      name: admin
      password: 123456

debug: true

4.解决默认耦合spring-security产生的问题

由于activiti默认耦合spring-security，为了方便Demo以最小化方式运行，将Security配置为无需登录即可访问。

@EnableWebSecurity
public class SecurityConfig extends WebSecurityConfigurerAdapter {

    @Override
    protected void configure(HttpSecurity http) throws Exception {
        http
                // 关闭csrf防护
                .csrf().disable()
                .headers().frameOptions().disable()
                .and()
                //定制url访问权限
                .authorizeRequests()
                //无需登录即可访问
                .antMatchers("/**").permitAll()
                .and();
    }

    @Bean
    public UserDetailsService userDetailsService() {
        return new UserDetailsService() {
            @Override
            public UserDetails loadUserByUsername(String s) throws UsernameNotFoundException {
                return new User("admin", passwordEncoder().encode("123456"),
                        Arrays.asList(new SimpleGrantedAuthority("ROLE_ACTIVITI_USER"), new SimpleGrantedAuthority("GROUP_activitiTeam")));
            }
        };
    }

    @Bean
    public PasswordEncoder passwordEncoder() {
        return new BCryptPasswordEncoder();
    }
}

5.基本使用

简单流程的基本使用同Flowable，本文：搭建工作流应用

参考：springboot,spring 整合activiti7 ，这一篇就够了
