注：本文内容基于官方教程样例展开
目标
实现小球在平面上的运动，有反复弹跳的效果，有灯光阴影效果，并随弹跳高度变化
开始
1.创建基础容器
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>3D小球</title>
</head>
<body>
<div id="controls" style="background-color: transparent;"></div>
<script src="../three.min.js"></script>
<script src="../common.js"></script>
</body>
</html>2.初始化渲染器
const renderer = new THREE.WebGLRenderer({antialias: true});
renderer.setSize(window.innerWidth, window.innerHeight); // 设置渲染器宽高3.创建画布
const canvas = document.getElementById('controls');
canvas.appendChild(renderer.domElement);4.创建相机
const fov = 60;
const aspect = window.innerWidth / window.innerHeight;
const near = 1;
const far = 1000;
const camera = new THREE.PerspectiveCamera(fov, aspect, near, far);
camera.position.set(0, 20, 60);5.创建场景
const scene = new THREE.Scene();
scene.background = new THREE.Color('#ffffff');6.构建地面
const loader = new THREE.TextureLoader();
{
const planeSize = 40;
const texture = loader.load('https://threejs.org/manual/examples/resources/images/checker.png');
texture.wrapS = THREE.RepeatWrapping;
texture.wrapT = THREE.RepeatWrapping;
texture.magFilter = THREE.NearestFilter;
const repeats = planeSize / 2;
texture.repeat.set(repeats, repeats);
const planeGeo = new THREE.PlaneGeometry(planeSize, planeSize);
const planeMat = new THREE.MeshBasicMaterial({
map: texture,
side: THREE.DoubleSide,
});
planeMat.color.setRGB(1.5, 1.5, 1.5);
const mesh = new THREE.Mesh(planeGeo, planeMat);
mesh.rotation.x = Math.PI * -.5;
scene.add(mesh);
}7.构建主体小球与阴影
循环指定次数构建相应数量的小球，使用加载器加载的材质进行阴影构建。
const shadowTexture = loader.load('https://threejs.org/manual/examples/resources/images/roundshadow.png');
const sphereShadowBases = [];
{
const sphereRadius = 1;
const sphereWidthDivisions = 32;
const sphereHeightDivisions = 16;
const sphereGeo = new THREE.SphereGeometry(sphereRadius, sphereWidthDivisions, sphereHeightDivisions);
const planeSize = 1;
const shadowGeo = new THREE.PlaneGeometry(planeSize, planeSize);
const numSpheres = 30;
for (let i = 0; i < numSpheres; ++i) {
const base = new THREE.Object3D();
scene.add(base);
const shadowMat = new THREE.MeshBasicMaterial({
map: shadowTexture,
transparent: true, // so we can see the ground
depthWrite: false, // so we don't have to sort
});
const shadowMesh = new THREE.Mesh(shadowGeo, shadowMat);
shadowMesh.position.y = 0.001; // so we're above the ground slightly
shadowMesh.rotation.x = Math.PI * -.5;
const shadowSize = sphereRadius * 4;
shadowMesh.scale.set(shadowSize, shadowSize, shadowSize);
base.add(shadowMesh);
const u = i / numSpheres;
const sphereMat = new THREE.MeshPhongMaterial();
sphereMat.color.setHSL(u, 1, .75);
const sphereMesh = new THREE.Mesh(sphereGeo, sphereMat);
sphereMesh.position.set(0, sphereRadius + 2, 0);
base.add(sphereMesh);
sphereShadowBases.push({base, sphereMesh, shadowMesh, y: sphereMesh.position.y});
}
}8.创建环境光
{
const skyColor = '#B1E1FF';
const groundColor = "#B97A20";
const intensity = 0.75;
const light = new THREE.HemisphereLight(skyColor, groundColor, intensity);
scene.add(light);
}9.创建直射光源
{
const color = '#FFFFFF';
const intensity = 0.5;
const light = new THREE.DirectionalLight(color, intensity);
light.position.set(0, 10, 5);
light.target.position.set(-5, 0, 0);
scene.add(light);
scene.add(light.target);
}10.渲染器尺寸自适应
每帧动画都需要自适应渲染器尺寸大小
function resizeRendererToDisplaySize(renderer) {
const canvas = renderer.domElement;
const width = canvas.clientWidth;
const height = canvas.clientHeight;
const needResize = canvas.width !== width || canvas.height !== height;
if (needResize) {
renderer.setSize(width, height, false);
}
return needResize;
}11.逐帧动画
function render(time) {
time *= 0.001;
resizeRendererToDisplaySize(renderer);
{
const canvas = renderer.domElement;
camera.aspect = canvas.clientWidth / canvas.clientHeight;
camera.updateProjectionMatrix();
}
sphereShadowBases.forEach((sphereShadowBase, ndx) => {
const {base, sphereMesh, shadowMesh, y} = sphereShadowBase;
const u = ndx / sphereShadowBases.length;
const speed = time * .2;
const angle = speed + u * Math.PI * 2 * (ndx % 1 ? 1 : -1);
const radius = Math.sin(speed - ndx) * 10;
base.position.set(Math.cos(angle) * radius, 0, Math.sin(angle) * radius);
const yOff = Math.abs(Math.sin(time * 2 + ndx));
// 上下移动小球
sphereMesh.position.y = y + THREE.MathUtils.lerp(-2, 2, yOff);
// 阴影随小球上下移动渐变效果
shadowMesh.material.opacity = THREE.MathUtils.lerp(1, .25, yOff);
});
renderer.render(scene, camera);
requestAnimationFrame(render);
}
requestAnimationFrame(render);12.添加交互
addMouseDragging(renderer, scene)
addMouseWheel(renderer, camera)13.添加辅助线
为相机，场景，几何体，地面等添加辅助线，以帮助更好掌握视角光线等信息。

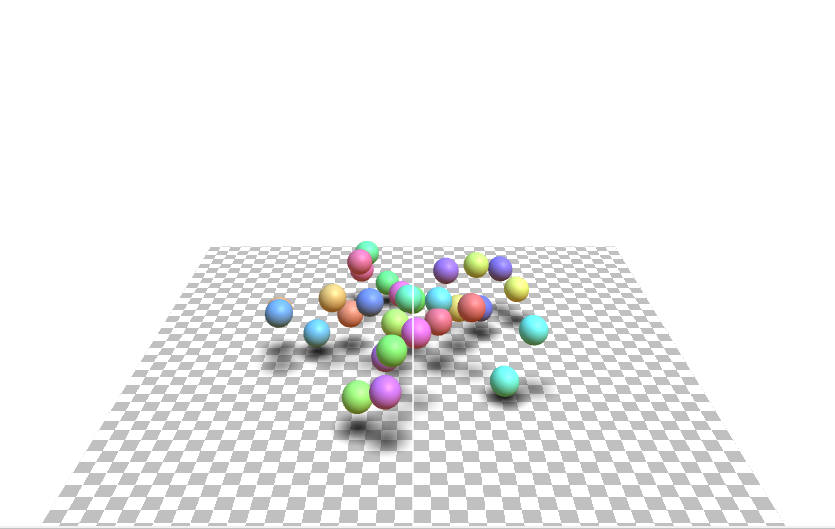

实现样例
本文完整代码
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>3D小球</title>
</head>
<body>
<div id="controls" style="background-color: transparent;">
</div>
<script src="../three.min.js"></script>
<script src="../common.js"></script>
<script>
const canvas = document.getElementById('controls');
const renderer = new THREE.WebGLRenderer({antialias: true});
renderer.setSize(window.innerWidth, window.innerHeight); // 设置渲染器宽高
canvas.appendChild(renderer.domElement);
const fov = 60;
const aspect = window.innerWidth / window.innerHeight; // the canvas default
const near = 1;
const far = 1000;
const camera = new THREE.PerspectiveCamera(fov, aspect, near, far);
camera.position.set(0, 20, 60);
// camera.lookAt(0, 0, 0);
const scene = new THREE.Scene();
// scene.background = new THREE.Color('white');
scene.background = new THREE.Color('#ffffff');
const helper = new THREE.CameraHelper(camera);
scene.add(helper);
const loader = new THREE.TextureLoader();
{
const planeSize = 40;
const texture = loader.load('https://threejs.org/manual/examples/resources/images/checker.png');
texture.wrapS = THREE.RepeatWrapping;
texture.wrapT = THREE.RepeatWrapping;
texture.magFilter = THREE.NearestFilter;
// texture.colorSpace = THREE.SRGBColorSpace;
const repeats = planeSize / 2;
texture.repeat.set(repeats, repeats);
const planeGeo = new THREE.PlaneGeometry(planeSize, planeSize);
const planeMat = new THREE.MeshBasicMaterial({
map: texture,
side: THREE.DoubleSide,
});
planeMat.color.setRGB(1.5, 1.5, 1.5);
const mesh = new THREE.Mesh(planeGeo, planeMat);
mesh.rotation.x = Math.PI * -.5;
scene.add(mesh);
}
const shadowTexture = loader.load('https://threejs.org/manual/examples/resources/images/roundshadow.png');
const sphereShadowBases = [];
{
const sphereRadius = 1;
const sphereWidthDivisions = 32;
const sphereHeightDivisions = 16;
const sphereGeo = new THREE.SphereGeometry(sphereRadius, sphereWidthDivisions, sphereHeightDivisions);
const planeSize = 1;
const shadowGeo = new THREE.PlaneGeometry(planeSize, planeSize);
const numSpheres = 30;
for (let i = 0; i < numSpheres; ++i) {
// make a base for the shadow and the sphere.
// so they move together.
const base = new THREE.Object3D();
scene.add(base);
// add the shadow to the base
// note: we make a new material for each sphere
// so we can set that sphere's material transparency
// separately.
const shadowMat = new THREE.MeshBasicMaterial({
map: shadowTexture,
transparent: true, // so we can see the ground
depthWrite: false, // so we don't have to sort
});
const shadowMesh = new THREE.Mesh(shadowGeo, shadowMat);
shadowMesh.position.y = 0.001; // so we're above the ground slightly
shadowMesh.rotation.x = Math.PI * -.5;
const shadowSize = sphereRadius * 4;
shadowMesh.scale.set(shadowSize, shadowSize, shadowSize);
base.add(shadowMesh);
// add the sphere to the base
const u = i / numSpheres;
const sphereMat = new THREE.MeshPhongMaterial();
// sphereMat.color.setHSL(u, 1, .75);
sphereMat.color.setHSL(u, 1, .75);
const sphereMesh = new THREE.Mesh(sphereGeo, sphereMat);
sphereMesh.position.set(0, sphereRadius + 2, 0);
base.add(sphereMesh);
// remember all 3 plus the y position
sphereShadowBases.push({base, sphereMesh, shadowMesh, y: sphereMesh.position.y});
}
}
{
const skyColor = '#B1E1FF'; // light blue
const groundColor = "#B97A20"; // brownish orange
const intensity = 0.75;
const light = new THREE.HemisphereLight(skyColor, groundColor, intensity);
scene.add(light);
}
{
const color = '#FFFFFF';
const intensity = 0.5;
const light = new THREE.DirectionalLight(color, intensity);
light.position.set(0, 10, 5);
light.target.position.set(-5, 0, 0);
scene.add(light);
scene.add(light.target);
}
function resizeRendererToDisplaySize(renderer) {
const canvas = renderer.domElement;
const width = canvas.clientWidth;
const height = canvas.clientHeight;
const needResize = canvas.width !== width || canvas.height !== height;
if (needResize) {
renderer.setSize(width, height, false);
}
return needResize;
}
function render(time) {
time *= 0.001; // convert to seconds
resizeRendererToDisplaySize(renderer);
{
const canvas = renderer.domElement;
camera.aspect = canvas.clientWidth / canvas.clientHeight;
camera.updateProjectionMatrix();
}
sphereShadowBases.forEach((sphereShadowBase, ndx) => {
const {base, sphereMesh, shadowMesh, y} = sphereShadowBase;
// u is a value that goes from 0 to 1 as we iterate the spheres
const u = ndx / sphereShadowBases.length;
// compute a position for there base. This will move
// both the sphere and its shadow
const speed = time * .2;
const angle = speed + u * Math.PI * 2 * (ndx % 1 ? 1 : -1);
const radius = Math.sin(speed - ndx) * 10;
base.position.set(Math.cos(angle) * radius, 0, Math.sin(angle) * radius);
// yOff is a value that goes from 0 to 1
const yOff = Math.abs(Math.sin(time * 2 + ndx));
// move the sphere up and down
sphereMesh.position.y = y + THREE.MathUtils.lerp(-2, 2, yOff);
// fade the shadow as the sphere goes up
shadowMesh.material.opacity = THREE.MathUtils.lerp(1, .25, yOff);
});
renderer.render(scene, camera);
requestAnimationFrame(render);
}
requestAnimationFrame(render);
// 添加交互
addMouseDragging(renderer, scene)
addMouseWheel(renderer, camera)
</script>
</body>
</html>作者：yuanfun 创建时间：2024-12-30 09:00
